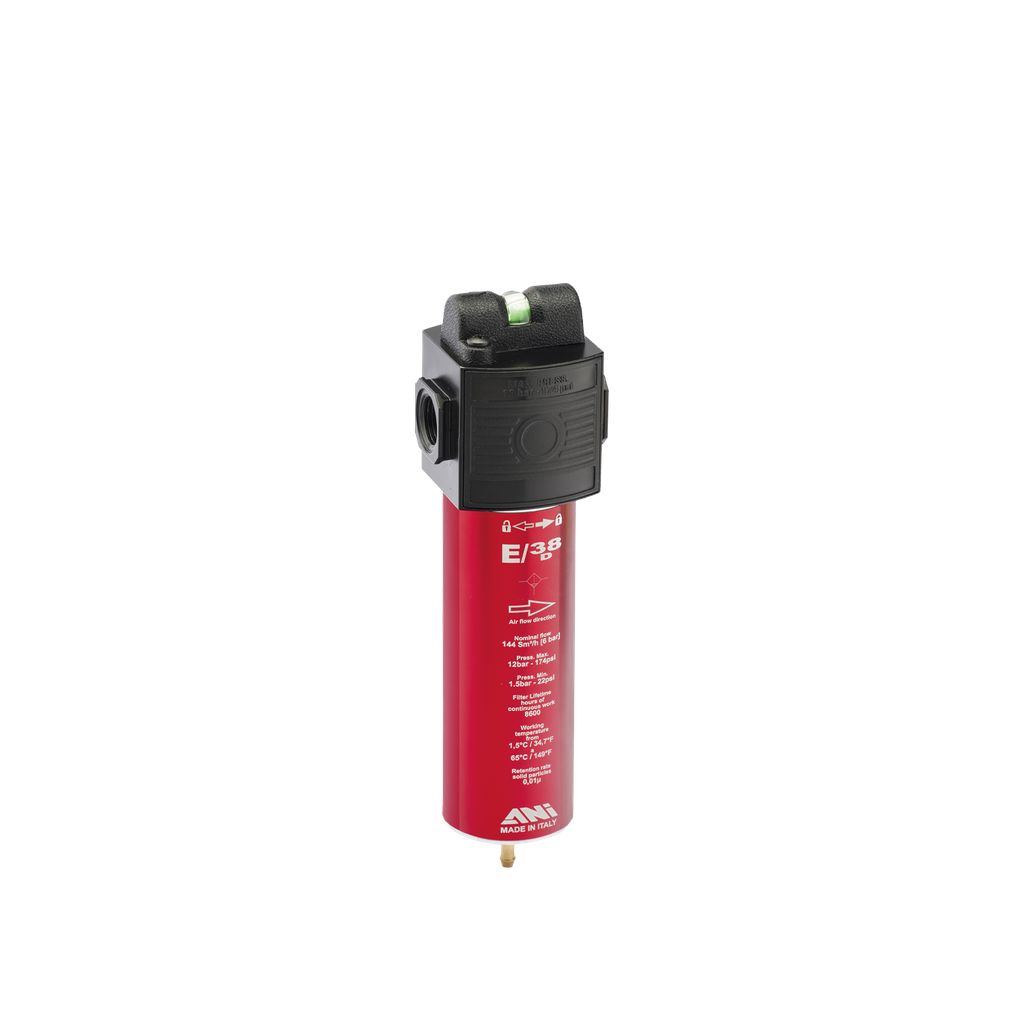

E/38-D

Filter with oil separator

ANI

SKU:

Kod:

1,200.00 zł
1,476.00 zł/ pc. 1476.0 PLN

Gross price [PLN]

Small quantity

975.61 zł

This combination does not exist.

Thread
- 1/2" F BSP
Nominal flow rate
- 144 m³/h (2400 l/min) [6 bar]
Max pressure
- 12 bar (174 psi)
Min pressure
- 1.5 bar (22 psi)
Filter life
- 8.6 godz. (ciągłej pracy)
Solid particle retention
- 0.01 μm
Residual vapours and volatile hydrocarbons retention
- 0.1 mg/m³ [1 bar, 20°C]

Oil separator microfilter
Quick-connect metallic bowl with semiautomatic and manual (on demand) drain
Complete with fitting for drain hose connection
Differential pressure gauge (DF) to report when the oil separation filter is clogged

Area of application: compressed air

Thread:	1/2" F BSP
Nominal flow rate:	144 m³/h (2400 l/min) [6 bar]
Max pressure:	12 bar (174 psi)
Min pressure:	1.5 bar (22 psi)
Filter life:	8.6 godz. (ciągłej pracy)
Solid particle retention:	0.01 μm
Residual vapours and volatile hydrocarbons retention:	0.1 mg/m³ [1 bar, 20°C]
