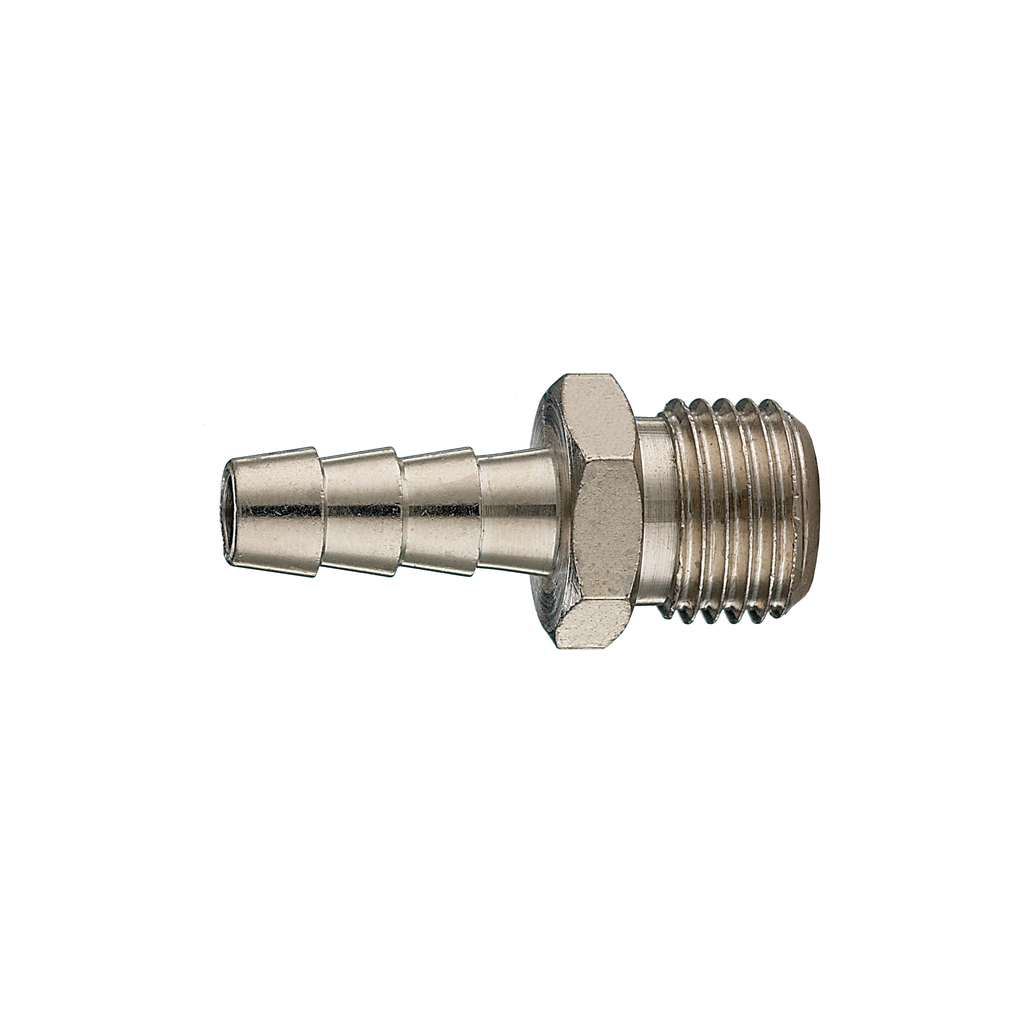

Male threaded rubber hose connector with tailpiece
Cylindrical male thread - ISO 228 (BSPP)
Nickel-plated brass (UNI EN 12164 CW 614N)
CODE
F
D mm
f mm
P1 mm
P2 mm
L mm
Klucz
AS010401
1/8" M BSPP
ø 6
ø 3
18.5
7.5
30
11
AS010402
1/8" M BSPP
ø 7
ø 4
18.5
7.5
30
11
AS010403
1/8" M BSPP
ø 8
ø 5
18.5
7.5
30
11
AS010404
1/4" M BSPP
ø 6
ø 3
18.5
8.5
31
14
AS010405
1/4" M BSPP
ø 7
ø 4
18.5
8.5
31
14
AS010406
1/4" M BSPP
ø 8
ø 5
18.5
8.5
31
14
AS010407
1/4" M BSPP
ø 9
ø 5.5
20.5
8.5
33
14
AS010408
1/4" M BSPP
ø 10
ø 6.5
20.5
8.5
33
14
AS010409
1/4" M BSPP
ø 12
ø 7.5
20.5
8.5
33
14
AS010410
3/8" M BSPP
ø 9
ø 5.5
23.5
12.5
41
18
AS010411
3/8" M BSPP
ø 10
ø 5.5
23.5
12.5
41
18
AS010412
3/8" M BSPP
ø 12
ø 7
23.5
12.5
41
18
AS010460
3/8" M BSPP
ø 14
ø 9
26.5
12.5
44
18
AS010413
1/2" M BSPP
ø 12
ø 7
26.5
12.5
45.5
22
AS010414
1/2" M BSPP
ø 14
ø 9
26.5
13.5
46
22
AS010415
1/2" M BSPP
ø 16
ø 11
26.5
13.5
46
22
