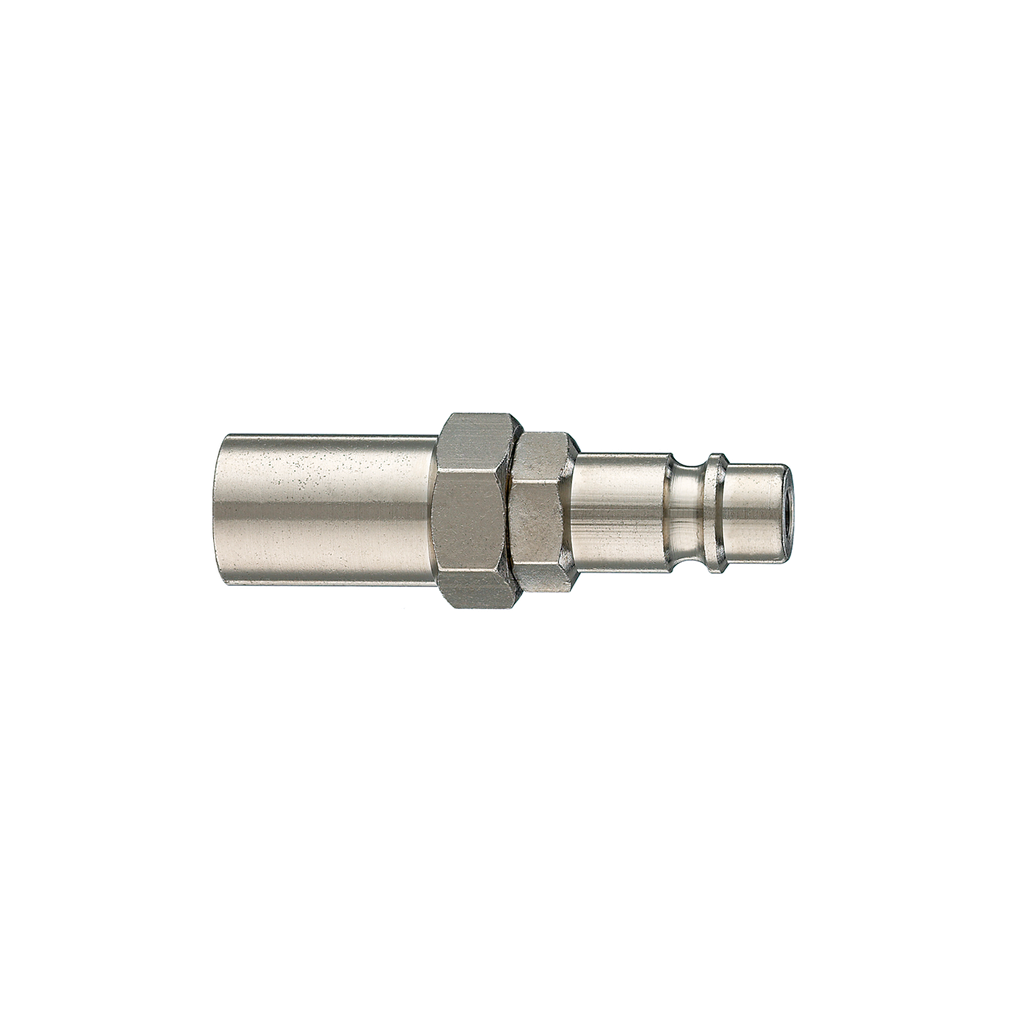

German profile quick fitting with sleeve for rubber hose
Nickel-plated brass (UNI EN 12164 CW 614N)
Compatibility CEJN 320 - RECTUS 26
CODE
Di x De mm
f mm
P mm
L mm
Wrench - 1
Wrench - 2
AH023504
ø 8 x 12
ø 5
30
56.5
14
17
AH023505
ø 8 x 14
ø 5
30
56.5
14
19
AH023501
ø 8 x 17
ø 5
30
56.5
14
21
AH023502
ø 10 x 17
ø 6
30
56.5
14
20
AH023503
ø 10 x 19
ø 6
30
56.5
14
24
